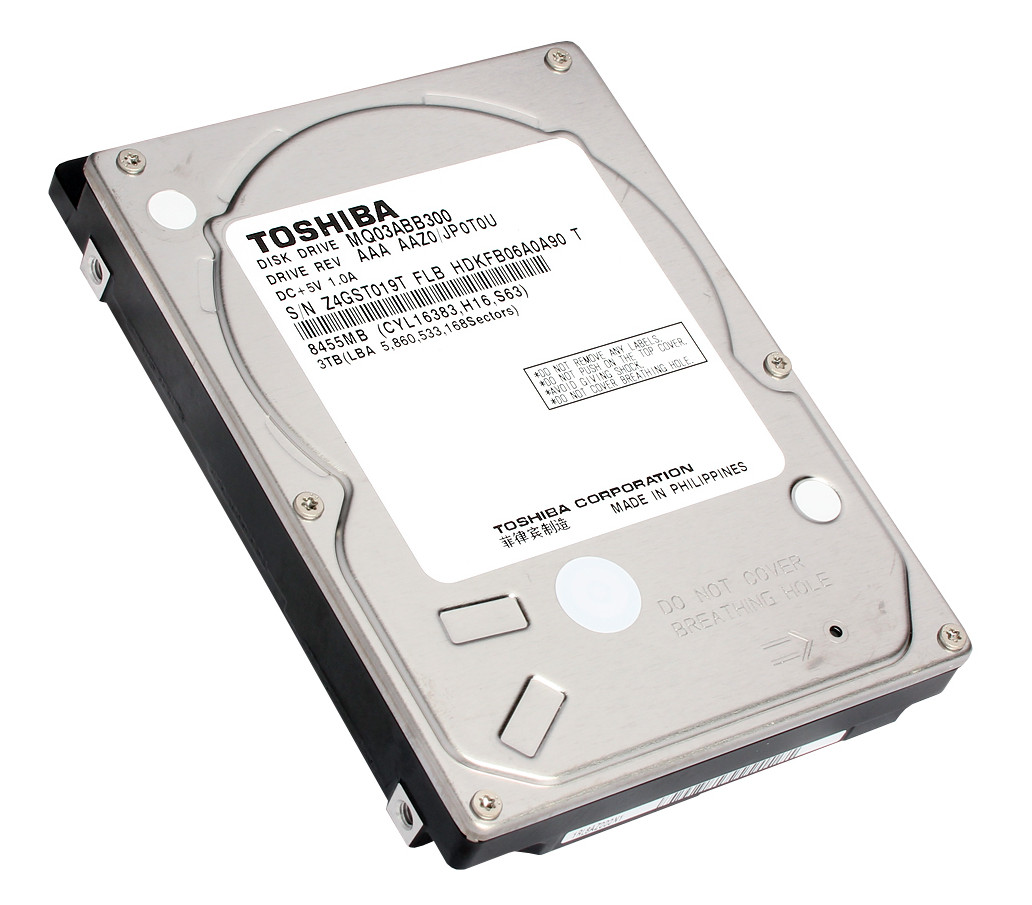

Toshiba announce 3TB 2.5inch HDD with 750GB per platter density

AT CES 2015, Toshiba Corporation has announced 3TB 2.5” HDD, MQ03ABB300. This is industry’s first 2.5” hard drive with 750GB per platter, thanks to perpendicular magnetic recording (PMR) technology. Data is stores on a total of four platters, with combined size of 3TB. Toshiba is planning to ship the hard drive from May 2015. While providing massive storage space, MQ03ABB300 also offers much lower power consumptions when compared to 2TB 2.5” hard drives from Toshiba.


Key Features:

  • Delivers Massive Storage Capacity in 2.5-inch Form Factor for Space Constrained Applications.
  • 3 TB Capacity in Small Form Factor with 15 mm Height
  • 5,400 rpm
  • SATA 3 (Up to 6.0 Gbit/s) with SATA Power Save
  • Advanced Format 512e
  • MTTF of 600,000 hours
  • RoHS Compatible, Halogen-Free and Antimony-Free

Specifications

MQ03ABB300
Basic Specifications
Interface Serial ATA 3.0 / ATA-8
Interface Speed 6.0 Gbit/s , 3.0 Gbit/s , 1.5 Gbit/s
Formatted Capacity 3 TB
Logical Data Block Length ( HOST ) 512 B
Logical Data Block Length ( DISK ) 4,096 B
Environmental Compliance RoHS Compatible
Performances
Buffer Size 16 MiB
Rotation Speed 5,400 rpm
Average Latency Time 5.56 ms
Reliability
Unrecoverable Error Rate 1 per 1014 bits read
Power Requirements
Supply Voltage 5 V ±5 %
Power Consumption ( Read / Write ) 1.70 W Typ.
Power Consumption ( Low Power Idle ) 0.70 W Typ.
Energy Consumption Efficiency / Category Name 0.000234 / J
Dimensions
Height 15.0 mm
Width 69.85 mm
Length 100.0 mm
Weight 180 g Max.
Environmental Requirements
Temperature ( Operating ) 0 to 60 °C
Temperature ( Non-operating ) -40 to 65 ℃
Humidity ( Operating ) 8 to 90 % R.H.
Humidity ( Non-operating ) 8 to 90 % R.H.
Altitude ( Operating ) -300 to 3,000 m
Altitude ( Non-operating ) -300 to 12,000 m
Vibration ( Operating ) 9.8 m/s2 { 1.0 G } ( 5 to 500 Hz )
Vibration ( Non-operating ) 49 m/s2 { 5.0 G } ( 15 to 500 Hz )
ShocK ( Operating ) 1,960 m/s2 { 200 G } ( 1 ms half sine wave )
2,940 m/s2 { 300 G } ( 2 ms half sine wave )
Shock ( Non-operating ) 5,880 m/s2 { 600 G } ( 1 ms half sine wave )
1,960 m/s2 { 200 G } ( 11 ms half sine wave )
Acoustics ( Sound Power )
Idle 25 dB
Seek 25 dB
